Overview

For installation, go directly to Installation. Examples, Examples.

More in depth guides can be found here:

This is a framework for Filter components which compose an image processing pipeline. It mostly takes care of setup, serialization and communication between the components and various outher quality-of-life things. There are also some basic utility components included for stuff like reading and writing video, REST endpoint input, MQTT Bridge, Web Viewer and more.

A user filter component will subclass off of the Filter class provided here and is meant to be built and run as an indivisual unit in a pipeline. There are functions to run a user Filter component alongside other Filters in their own processes in order to rapidly test and iterate.

Filters are chained together in a pipeline and can have up to many-to-many topologies, as long as there are no cycles. Synchronization is taken care of automatically so that all input frames that come in together stay together until the output. Unsynchronized filter paths can also be specified to allow a slower processing path to be triggerred without slowing down the rest of the pipeline. Load balancing is also supported so that an expensive workload can be broken up to run on multiple copies of a Filter (or even pipeline) in parallel and the sequence rejoined on output to achieve a higher framerate than would be possible with a single Filter.

For more misc tidbits of knowledge see the Other stuff section at the end.

Filter​

The Filter class is the base class for all filters. A filter is just a component which may originate, process or export a stream of images and/or data, usually images. Your own filter component will derive from Filter and overload a few functions in order to do its thing. There are a few functions which can be overloaded, but three main functions you will normally work with and only one of them is absolutely necessary - process(). The basic template is as follows:

from openfilter.filter_runtime import FilterConfig, Filter

class MyFilterConfig(FilterConfig):
    my_option: str
    ...

class MyFilter(Filter):
    @classmethod
    def normalize_config(cls, config):
        ...
        config = MyFilterConfig(super().normalize_config(config))
        ...
        return config

    def setup(self, config):
        ...

    def process(self, frames):
        ...
        return frames

The config class (in this case MyFilterConfig) is at base just a dictionary of key/value pairs which can be accessed as attributes for convenience. It is parsed for you from environment variables or command line arguments or passed in from another function executing your filter.

The normalize_config() function is called on filter instantiation to validate and normalize a config object. It is the job of this function to put the config into a state you will use and make sure the options make sense. The function should only check for correctness, not presence or absence of outside resources like files or network connections.

That is the job of the setup() function. This function will be called with the same config object that was returned from your normalize_config(). It will be the very same object so if you want to add hidden config options in that function, the pattern for that is to name those options starting with an underscore '_', and they will not be logged when the config object is logged but you will get them in setup(). You should treat the config object as a function parameter and copy it or parts of it to your own local class attributes in setup().

Finally, the process() function will be called on each frame or multiple frames received from one or more upstream connected Filter components. The incoming parameter frames is a dictionary of zero or more string topic name indexed Frame objects. A Frame object encapsulates exactly one or zero images and a data dictionary associated with the image. You do your processing needed in this function and return None, a single Frame object or a dictionary of string topic names indexing Frame objects. If None is returned then nothing is passed downstream, otherwise whatever you return (including an empty dictionary) will become the input for downstream Filter components.

Other functions you may find useful to overload is shutdown(), this is called on exit (clean or exception) and lets you clean up after yourself.

Frame​

A Frame object encapsulates an image possibly or None and a (possibly empty) dictionary of key/value pairs associated with that image. It is perfectly fine to pass data without passing an image, but if there is data to be passed which relates to an image then it should be passed in the dictionary of the Frame containing that image.

When dealing with Frame objects there is no preset format (RGB, BGR or GRAY). The Frame itself knows what format the image is in and when you wish to use the image you request it in the format you want: frame.rgb, frame.bgr or frame.gray. These properties are smart and if the image in the frame is already in the requested format then they do nothing and just return the current Frame. Likewise, when creating a Frame object for passing downstream you should specify the format you are sending to avoid ambiguity, either by specifying it directly as in Frame(image, data, 'BGR') or by using the incoming frame as a template to copy data and format information Frame(new_image, old_frame).

A Frame will also normally come from upstream with a readonly image. For technical reasons this is more optimal than always creating a writable image when all you will need to do is read the image (like for inference). JPG encoding is normally also used for passing the images between component and if a readonly frame does not have its image modified and passes the image downstream in the proper way then relatively expensive reencoding of the JPG image does not have to take place again as it will be passed through cached in the Frame object, even if you create a new frame from the incoming one, e.g. Frame(old_frame, new_data).

If you need a writable image because you will be modifying it or passing it to something which needs a writable image then you need to conver the frame first. This is done in a manner similar to format conversion, frame.rw will give you a new Frame with a writable copy of the incoming image. If the frame object was already writable then nothing happens and you get back the same frame. A new writable Frame object will not preserve any JPG encoding that came in from the network though as it is writable and any changes which will be done to the image would invalidate the encoding anyway.

If you need an image from an incoming frame in a specific format / writable state you should always assume the incoming frame is in an unknown state and access it in the way you will want the image. frame.rw_rgb, frame.rw_bgr, frame.ro_rgb and frame.ro_bgr will give you the a Frame object with the kind of image you want in the most optimal manner from what the Frame currently is, including returning the same exact Frame object if it is already in the desired format. Likewise, if possible, it will preserve any JPG encoding to pass on downstream.

Installation

Quick install with ALL dependencies​

These installation instructions will install all the dependencies used by all builtin utility filters. If you wish to install without those dependencies then simply omit the [all].

From PyPI​

pip install openfilter[all]

From Git​

pip install git+ssh://git@github.com/PlainsightAI/openfilter.git@main#egg=openfilter[all]

A specific version:

pip install git+ssh://git@github.com/PlainsightAI/openfilter.git@v1.3.17#egg=openfilter[all]

If you want to edit the code:

git clone git@github.com:PlainsightAI/openfilter.git
cd openfilter
pip install -e .[all]

Examples

Show a video​

Replace PATH_TO_YOUR_VIDEO.mp4 with a filename. When this script is running, go to http://localhost:8000 or http://localhost:8000/main to see the video playing, the script will exit when the video ends. Also note that the video input can take the form of rtsp://path:port/name or even webcam://0 for the first webcam, etc...

from openfilter.filter_runtime.filter import Filter
from openfilter.filter_runtime.filters.video_in import VideoIn
from openfilter.filter_runtime.filters.webvis import Webvis

if __name__ == '__main__':
    Filter.run_multi([
        (VideoIn, dict(sources='file://PATH_TO_YOUR_VIDEO.mp4', outputs='tcp://*')),
        (Webvis,  dict(sources='tcp://localhost')),
    ])

Or running with the CLI:

openfilter run \
  - VideoIn --sources file://PATH_TO_YOUR_VIDEO.mp4 --outputs 'tcp://*' \
  - Webvis --sources tcp://localhost

The CLI will also autochain filters in simple cases:

openfilter run - VideoIn --sources file://PATH_TO_YOUR_VIDEO.mp4 - Webvis

From now on the examples will be in script format but understand that they are all runnable using the other methods. Assuming of course you have your filters installed as python modules for the command line approach.

Example code for quick filter to process a video frame by frame and write out to another video​

When this script finishes you can view the output file 'output.mp4'. Note that the !sync option on the video source reads the video one frame at a time without skipping anything as fast as possible for processing.

from openfilter.filter_runtime import Frame, Filter
from openfilter.filter_runtime.filters.video_in import VideoIn

class MyFilter(Filter):
    def setup(self, config):  # not needed, just to show usage
        print(f'MyFilter setup: {config.my_happy_little_option=}')

    def process(self, frames):
        frame = frames['main'].rw_rgb  # take the most optimal path to a writable RGB format image from whatever came in
        image = frame.image
        data  = frame.data

        # TODO: process image and data here
        image[:, :, 1] = 0  # zero out the green channel

        return Frame(image, data, 'RGB')  # return frame with new image data, WARNING! if you don't pass the data through the FPS on output videos will be wrong! Specifically the 'meta' object in `.data`, but best practice is to copy the incoming data and add your own data to it.

    def shutdown(self):  # not needed, just to show usage
        print('MyFilter shutting down')

if __name__ == '__main__':
    Filter.run_multi([
        (VideoIn,  dict(sources='file://PATH_TO_YOUR_VIDEO.mp4!sync', outputs='tcp://*')),  # the '!sync' option reads the video one frame at a time without skipping anything as fast as possible for processing

        (MyFilter, dict(sources='tcp://localhost',                    outputs='tcp://*:5552', my_happy_little_option='YAY')),

        (VideoIn,  dict(sources='tcp://localhost:5552',               outputs='file://output.mp4')),
    ])

Write every 50th frame from a video to individual jpgs​

Note that we don't need to encode the jpg image ourselves but rather use the Frame.jpg functionality for it since it is there for compression over then network anyway. The frame_id is a monotonically increasing frame number that comes from the VideoIn input.

from openfilter.filter_runtime.filter import Filter
from openfilter.filter_runtime.filters.video_in import VideoIn

class WriteFrames(Filter):
    def process(self, frames):
        frame    = frames["main"]
        frame_id = frame.data["meta"]["id"]

        if not frame_id % 50:
            with open(f'frame_{frame_id:04}.jpg', 'wb') as file:
                file.write(frame.bgr.jpg)  # Frame object encodes jpg but it must come from 'BGR' format to be correct since that is how cv2 processes things, confusing, yes, blame opencv, I do, daily

if __name__ == '__main__':
    Filter.run_multi([
        (VideoIn,     dict(sources='file://PATH_TO_YOUR_VIDEO.mp4!sync', outputs='tcp://*')),  # '!sync' again because we don't want to wait around all day

        (WriteFrames, dict(sources='tcp://localhost')),
    ])

Multiple input videos on different topics and simple MQTT​

This example demonstrates sending on different topics from reading two videos simultaneously and passing them on to two downstream filters. The Util filter will just log what it gets and the MQTT Bridge filter will output the image as a base64 encoded jpg and the metadata that came with the frame to an mqtt topic. Needless to say you must have an MQTT broker running. You can view the MQTT output with something like MQTT explorer. Note that in the Util filter we subscribe to the main topic which comes from the first video and a special hidden _metrics topic which has some runtime metrics from the Video Source filter. The script will terminate when the first video finishes.

from openfilter.filter_runtime.filter import Filter
from openfilter.filter_runtime.filters.mqtt_out import MQTTOut
from openfilter.filter_runtime.filters.util import Util
from openfilter.filter_runtime.filters.video_in import VideoIn

if __name__ == '__main__':
    Filter.run_multi([
        (VideoIn, dict(sources='file://PATH_TO_YOUR_VIDEO.mp4, file://PATH_TO_ANOTHER_VIDEO.mp4;other', outputs='tcp://*')),  # note the ';other' topic specifier

        (Util,    dict(sources='tcp://localhost;main;_metrics', log=True)),  # we only subscribe to one video topic, the ';main' (which is default topic, of the first video)

        (MQTTOut, dict(sources='tcp://localhost;other', outputs='mqtt://localhost:1883/my_mqtt_topic;other')),  # we will receive only the 'other' topic and send it out in its entirety to the broker on the 'my_mqtt_topic' topic
    ])

Load balancing​

This example uses the Util filter with delays to simulate long processing times to show how load balancing works. There are three workers that are alternated and note the frame rate at each of those vs. the frame rate at the final output component. Even though each of the three workers sleeps for 3 seconds on every frame, the final output gets 1 frame per second because there are 3 workers. The 'id's are not obligatory, just showing their use.

from openfilter.filter_runtime.filter import Filter
from openfilter.filter_runtime.filters.util import Util
from openfilter.filter_runtime.filters.video_in import VideoIn

if __name__ == '__main__':
    Filter.run_multi([
        (VideoIn, dict(id='vidin',   sources='file://PATH_TO_YOUR_VIDEO.mp4!sync', outputs='tcp://*')),

        (Util,    dict(id='split',   sources='tcp://localhost', outputs='tcp://*:5552, tcp://*:5554, tcp://*:5556', outputs_balance=True, log=True, sleep=1)),

        (Util,    dict(id='worker1', sources='tcp://localhost:5552', outputs='tcp://*:5562', log=True, sleep=3)),
        (Util,    dict(id='worker2', sources='tcp://localhost:5554', outputs='tcp://*:5564', log=True, sleep=3)),
        (Util,    dict(id='worker3', sources='tcp://localhost:5556', outputs='tcp://*:5566', log=True, sleep=3)),

        (Util,    dict(id='joined',  sources='tcp://localhost:5562, tcp://localhost:5564, tcp://localhost:5566', sources_balance=True, log=True)),
    ])

Side channel for expensive workloads​

This example shows sending off a workload once in a while to a side channel without slowing down the main pipeline. Note that the 'main' topic stays at a stable 1 frame per second regardless of the fact that whenever the 'side' Util receives a frame it sleeps for 3 seconds. This is enabled by specifying the source for that channel with a trailing '?' character - sources='tcp://localhost:5552?, these are called ephemeral channels because they don't participate in the synchronization of the main stream of frames.

from random import randint

from openfilter.filter_runtime.filter import Filter
from openfilter.filter_runtime.filters.util import Util
from openfilter.filter_runtime.filters.video_in import VideoIn

class MyFilter(Filter):
    def process(self, frames):
        if randint(0, 3) == 0:  # once every 4 frames duplicate the frame on another topic
            frame  = frames['main']
            frames = {'main': frame, 'side': frame}

        return frames

if __name__ == '__main__':
    Filter.run_multi([
        (VideoIn,  dict(sources='file://PATH_TO_YOUR_VIDEO.mp4!sync', outputs='tcp://*')),

        (MyFilter, dict(sources='tcp://localhost', outputs='tcp://*:5552', log=True)),

        (Util,     dict(id='main', sources='tcp://localhost:5552;main', log=True, sleep=1)),
        (Util,     dict(id='side', sources='tcp://localhost:5552?;side', log=True, sleep=3)),
    ])

Previous load balancing example with dedicated metrics output to MQTT​

This introduces doubly-ephemeral channels '??' which are strictly listeners (they don't send requests or participate in flow control at all) and the dedicated metrics output channel. The dedicated metrics channel is the only way to get metrics from an output load balancing component guaranteed not to cause problems with balancing.

from openfilter.filter_runtime.filter import Filter
from openfilter.filter_runtime.filters.mqtt_out import MQTTOut
from openfilter.filter_runtime.filters.util import Util
from openfilter.filter_runtime.filters.video_in import VideoIn

if __name__ == '__main__':
    Filter.run_multi([
        (VideoIn, dict(id='vidin',   sources='file://PATH_TO_YOUR_VIDEO.mp4!sync', outputs='tcp://*', outputs_metrics='tcp://*:6550')),

        (Util,    dict(id='split',   sources='tcp://localhost', outputs='tcp://*:5552, tcp://*:5554, tcp://*:5556', outputs_balance=True, log=True, sleep=1, outputs_metrics='tcp://*:6560')),

        (Util,    dict(id='worker1', sources='tcp://localhost:5552', outputs='tcp://*:5562', log=True, sleep=3, outputs_metrics='tcp://*:6552')),
        (Util,    dict(id='worker2', sources='tcp://localhost:5554', outputs='tcp://*:5564', log=True, sleep=3, outputs_metrics='tcp://*:6554')),
        (Util,    dict(id='worker3', sources='tcp://localhost:5556', outputs='tcp://*:5566', log=True, sleep=3, outputs_metrics='tcp://*:6556')),

        (Util,    dict(id='joined',  sources='tcp://localhost:5562, tcp://localhost:5564, tcp://localhost:5566', sources_balance=True, log=True, outputs_metrics='tcp://*:6558')),

        (MQTTOut, dict(
            id      = 'mqttout',
            sources = [
                'tcp://localhost:6550?? ; _metrics > m_vidin',
                'tcp://localhost:6560?? ; _metrics > m_split',
                'tcp://localhost:6552?? ; _metrics > m_worker1',
                'tcp://localhost:6554?? ; _metrics > m_worker2',
                'tcp://localhost:6556?? ; _metrics > m_worker3',
                'tcp://localhost:6558?? ; _metrics > m_joined',
            ],
            outputs  = 'mqtt://localhost:1883/metrics',
            mappings = [
                'm_vidin/data   > m_vidin',
                'm_split/data   > m_split',
                'm_worker1/data > m_worker1',
                'm_worker2/data > m_worker2',
                'm_worker3/data > m_worker3',
                'm_joined/data  > m_joined',
            ],
            interval = 4,  # sample once every four seconds
            qos      = 0,
            retain   = True
        )),
    ])

Convoluted example just to show a bunch stuff​

Webvis video at http://localhost:8000/yet_another.

from openfilter.filter_runtime.filter import Filter
from openfilter.filter_runtime.filters.mqtt_out import MQTTOut
from openfilter.filter_runtime.filters.recorder import Recorder
from openfilter.filter_runtime.filters.util import Util
from openfilter.filter_runtime.filters.video_in import VideoIn
from openfilter.filter_runtime.filters.webvis import Webvis

Filter.run_multi([
    (VideoIn, dict(
        id               = 'video_in',
        sources          = 'file://PATH_TO_YOUR_VIDEO.mp4!no-bgr!resize=640+480, file://PATH_TO_ANOTHER_VIDEO.mp4!maxsize=640x480!sync!loop=3;other, file://YET_ANOTHER_VIDEO.mp4!maxsize=1280x720;yet_another',
        outputs          = 'ipc://video_in_pipe',
    )),
    (Util, dict(
        id               = 'util',
        sources          = 'ipc://video_in_pipe',
        outputs          = 'tcp://*, ipc://util_pipe',
        outputs_required = 'webvis, video_out, mqtt_out',
        log              = True,
    )),
    (Webvis, dict(
        id               = 'webvis',
        sources          = 'tcp://localhost;yet_another',
        host             = '0.0.0.0',
        port             = 8000,
    )),
    (VideoIn, dict(
        id               = 'video_out',
        sources          = 'ipc://util_pipe;other>',
        outputs          = 'file://out_%Y%m%d_%H%M%S.mp4!segtime=1!fps=10!g=30',
    )),
    (MQTTOut, dict(
        id               = 'mqtt_out',
        sources          = 'tcp://127.0.0.1',
        mappings         = 'main, other/data>other_data!qos=0, yet_another/data>yet_more_data!retain',
        broker_host      = 'localhost',
        broker_port      = 1883,
        base_topic       = 'hello/world',
    )),
    (Recorder,  dict(
        id               = 'rec',
        sources          = 'ipc://video_in_pipe;*',
        outputs          = 'file://rec.txt!append',
        rules            = '+, -/meta/ts, -_metrics/mem',
        flush            = True
    )),
])

Convoluted example just to show a bunch stuff with the pedanticity cranked up to 11​

from openfilter.filter_runtime.filter import Filter
from openfilter.filter_runtime.filters.mqtt_out import MQTTOutConfig, MQTTOut
from openfilter.filter_runtime.filters.recorder import RecorderConfig, Recorder
from openfilter.filter_runtime.filters.util import UtilConfig, Util
from openfilter.filter_runtime.filters.video_in import VideoInConfig, VideoIn
from openfilter.filter_runtime.filters.video_out import VideoOutConfig, VideoOut
from openfilter.filter_runtime.filters.webvis import WebvisConfig, Webvis

Filter.run_multi([
    (VideoIn, VideoInConfig(
        id      ='video_in',
        sources = [
            VideoInConfig.Source(
                source  = 'file://PATH_TO_YOUR_VIDEO.mp4',
                topic   = 'main',
                options = VideoInConfig.Source.Options(
                    bgr    = False,
                    resize = '640+480',
                ),
            ),
            VideoInConfig.Source(
                source  = 'file://PATH_TO_ANOTHER_VIDEO.mp4',
                topic   = 'other',
                options = VideoInConfig.Source.Options(
                    maxsize = '640x480',
                    sync    = True,
                    loop    = 3,
                ),
            ),
            VideoInConfig.Source(
                source  = 'file://YET_ANOTHER_VIDEO.mp4',
                topic   = 'yet_another',
                options = VideoInConfig.Source.Options(
                    maxsize = '1280x720',
                ),
            ),
        ],
        outputs = ['ipc://video_in_pipe'],
    )),

    (Util, UtilConfig(
        id               = 'util',
        sources          = ['ipc://video_in_pipe'],
        outputs          = ['tcp://*', 'ipc://util_pipe'],
        outputs_required = ['webvis', 'video_out', 'mqtt_out'],
        log              = 'all',
    )),

    (Webvis, WebvisConfig(
        id      = 'webvis',
        sources = ['tcp://localhost;yet_another'],
        host    = '0.0.0.0',
        port    = 8000,
    )),

    (VideoOut, VideoOutConfig(
        id      = 'video_out',
        sources = ['ipc://util_pipe;other>'],
        outputs = [
            VideoOutConfig.Output(
                output  = 'file://out_%Y%m%d_%H%M%S.mp4',
                topic   = 'main',
                options = VideoOutConfig.Output.Options(
                    segtime = 1,
                    fps     = 10,
                    params  = {
                        'g': 30,
                    },
                ),
            ),
        ],
    )),

    (MQTTOut, MQTTOutConfig(
        id       = 'mqtt_out',
        sources  = ['tcp://127.0.0.1'],
        mappings = [
            MQTTOutConfig.Mapping(
                dst_topic = None,
                src_topic = 'main',
                src_path  = None,
                options   = MQTTOutConfig.Mapping.Options(),
            ),
            MQTTOutConfig.Mapping(
                dst_topic = 'other_data',
                src_topic = 'other',
                src_path  = 'data',
                options   = MQTTOutConfig.Mapping.Options(
                    qos = 0,
                ),
            ),
            MQTTOutConfig.Mapping(
                dst_topic = 'yet_more_data',
                src_topic = 'yet_another',
                src_path  = 'data',
                options   = MQTTOutConfig.Mapping.Options(
                    retain = True
                ),
            ),
        ],
        broker_host = 'localhost',
        broker_port = 1883,
        base_topic  = 'hello/world',
    )),

    (Recorder, RecorderConfig(
        id      = 'rec',
        sources = ['ipc://video_in_pipe;*'],
        outputs = [('file://rec.txt', {'append': True})],
        rules   = ['+', '-/meta/ts', '-_metrics/mem'],
        flush   = True,
    )),
])

OpenLineage Events in OpenFilter

OpenFilter uses the OpenLineage protocol to emit standardized metadata about filter executions. These events help track data lineage, system observability, and job health.

Types of Events Emitted​

OpenFilter emits three main types of lineage events:

1. START​

  • When it's sent: Right before the filter starts processing data.
  • Purpose: Signals the beginning of a new run.
  • Metadata:
    • eventType: "START"
    • runId: A new UUID for this run
    • job.name: Filter name
    • run.facets: Initial filter metadata (e.g., model name, filter name, etc.)

2. RUNNING (Heartbeat)​

  • When it's sent: Periodically during execution (default every 10 seconds).
  • Purpose: Keeps the lineage system aware that the filter is active.
  • Metadata:
    • eventType: "RUNNING"
    • Includes dynamic and updated facets like:
- `filter_name`
- `model_name`
- Frame/video metadata (e.g., source path, timestamp, FPS)
- runId matches the original ID from START (as with COMPLETE)

3. COMPLETE​

  • When it's sent: After the filter completes successfully.
  • Purpose: Marks the end of a successful execution.
  • Metadata:
    • eventType: "COMPLETE"
    • runId: Matches the original ID from START
    • Can include summary facets or statistics

⚠️ In case of interruption or failure, a fourth optional event ABORT can also be emitted to indicate early termination.

Summary of Metadata Fields​

FieldDescription
eventTimeTimestamp of event emission
eventTypeOne of: START, RUNNING, COMPLETE
runIdUnique ID for the filter run
filter_nameName of the filter
model_name(Optional) model used by the filter
job.nameSet to the filter name
namespaceAlways "Openfilter"
facetsFlattened and structured metadata from the filter

These events enable integration with OpenLineage-compatible tools (e.g., Marquez,Oleander and etc) for data observability and lineage visualization.

Setting Environment Variables for OpenFilterLineage​

The OpenFilterLineage class relies on several environment variables to configure its behavior. These variables can be set directly from the terminal before running your application.

Required Environment Variables​

Variable NameDescription
OPENLINEAGE_PRODUCERURL identifying the producer of the lineage events
OPENLINEAGE__HEART__BEAT__INTERVALInterval in seconds between RUNNING events (default: 10)
OPENLINEAGE_URLURL of the OpenLineage backend (e.g., http://localhost:5000)
OPENLINEAGE_API_KEYAPI key used for authentication with the HTTP transport
OPENLINEAGE_ENDPOINTOptional endpoint path (e.g., /api/v1/lineage)
OPENLINEAGE_VERIFY_CLIENT_URLtrue or false for SSL verification of the HTTP URL
OPENLINEAGE_DISABLEDtrue or false for enabling OpenLineage events. By default is set to False
[FILTER_NAME_]MODEL_NAMEModel name used by the filter (e.g., WEBVISMODEL_NAME)

Setting Variables by Platform Example​

On Linux/macOS (Bash or Zsh):​

export OPENLINEAGE_PRODUCER="https://my-company.com/openlineage"
export OPENLINEAGE__HEART__BEAT__INTERVAL=10
export OPENLINEAGE_URL="http://localhost:5000"
export OPENLINEAGE_API_KEY="your_api_key"
export OPENLINEAGE_ENDPOINT=/api/v1/lineage
export OPENLINEAGE_VERIFY_CLIENT_URL=false
export WEBVIS_MODEL_NAME="my-model-v1"

On Windows (CMD):​

set OPENLINEAGE_PRODUCER=https://my-company.com/openlineage
set OPENLINEAGE__HEART__BEAT__INTERVAL=10
set OPENLINEAGE_URL=http://localhost:5000
set OPENLINEAGE_API_KEY=your_api_key
set OPENLINEAGE_ENDPOINT=/api/v1/lineage
set OPENLINEAGE_VERIFY_CLIENT_URL=false
set WEBVIS_MODEL_NAME=my-model-v1

Note: These variables for Windows will only persist for the current CMD session.

📊 Visualizing Events in Marquez​

OpenFilterLineage emits OpenLineage-compliant events that can be visualized using Marquez, an open-source data lineage backend with a web-based UI. Marquez can be used locally as a testing and observability tool, allowing developers to inspect and validate lineage events generated by OpenFilter pipelines in real time.

🚀 Launching Marquez via Docker​

To run a local instance of Marquez for testing:

git clone https://github.com/MarquezProject/marquez.git
cd marquez
./docker/up.sh --seed

💡 Use --seed to preload demo data.
To start with a clean instance:

./docker/up.sh --no-seed

🌐 Default Service Endpoints​

ComponentURL
Web UIhttp://localhost:3000
REST APIhttp://localhost:5000
Healthcheckhttp://localhost:5001/healthcheck

🔗 Connecting OpenFilter to Marquez​

Set the following environment variables in your .env file or export them in your terminal:

OPENLINEAGE_URL=http://localhost:5000
OPENLINEAGE_API_KEY=                     # Optional: leave empty if not required
OPENLINEAGE_VERIFY_CLIENT_URL=false
OPENLINEAGE_ENDPOINT=/api/v1/lineage
OPENLINEAGE_PRODUCER=https://github.com/PlainsightAI/openfilter/tree/main/openfilter/observability
OPENLINEAGE__HEART__BEAT__INTERVAL=10

These values are used by the get_http_client() method inside OpenFilterLineage to configure the OpenLineage HTTP client.

📈 Accessing and Exploring Events​

Once your pipeline is emitting events, open the Marquez UI:

http://localhost:3000

You’ll be able to:

  • Browse Jobs – Each filter is registered as a job (filter_name)
  • Inspect Runs – Executions with unique runId
  • View Facets – Metadata like model name, frame rate, etc.
  • Explore the Lineage Graph – Dependencies between jobs and datasets

✅ Example Facet Output in Marquez​

{
  "eventTime": "2025-06-24 11:19:40.869547000",
  "eventType": "RUNNING",
  "inputs": [],
  "job": {
    "name": "FilterCrop",
    "namespace": "Openfilter"
  },
  "outputs": [],
  "producer": "https://github.com/PlainsightAI/openfilter/tree/main/openfilter/observability",
  "run": {
    "facets": {
      "openfilter": {
        "_producer": "https://github.com/PlainsightAI/openfilter/tree/main/openfilter/observability",
        "_schemaURL": "https://github.com/PlainsightAI/openfilter/tree/main/openfilter/lineage/schema/OpenFilterConfigRunFacet.json",
        "_type": "FilterCrop",
        "frame__data__meta__id": "34",
        "frame__data__meta__license_plate_detection": [
          "{'label': 'license_plate', 'score': 0.8943697810173035, 'box': [459, 282, 514, 313]}"
        ],
        "frame__data__meta__skip_ocr": false,
        "frame__data__meta__src": "file://example_video.mp4",
        "frame__data__meta__src_fps": "30",
        "frame__data__meta__topic": "main",
        "frame__data__meta__ts": 1750763980.251298,
        "frame__shapef": [
          "(720, 960, 3)",
          "BGR"
        ]
      },
      "tags": []
    },
    "runId": "5bef0a08-1fe1-4347-ad21-fbc29732dff5"
  },
  "schemaURL": "https://openlineage.io/spec/1-0-5/OpenLineage.json#/definitions/RunEvent"
}

🧹 Shutting Down Marquez​

To stop and clean up your local Marquez services:

./docker/down.sh

Or if you’re using Docker Compose directly:

docker-compose down

With this setup, your OpenFilter pipelines will emit standardized, structured metadata into Marquez, enabling clear visualization of filter activity, lineage tracking, and execution diagnostics.

▶️ Running an OpenFilter Pipeline with Marquez Integration​

To test Marquez with a real OpenFilter pipeline, you can clone the demo repository and run a pre-configured sequence of filters that emit lineage events automatically.

🔁 Example Pipeline with License Plate Recognition​

This example includes:

  • Video Source: reads a sample video
  • DriveID: detects license plates
  • Clipper: crops the plate region
  • TextScan: runs OCR
  • Plate ID OCR: annotates frames with detected text
  • Web Viewer: visualizes frames in the browser

🧪 Pipeline Runner Script​

from openfilter.filter_runtime.filter import Filter
from filter_license_plate_detection.filter import FilterLicensePlateDetection
from filter_crop.filter import FilterCrop
from filter_optical_character_recognition.filter import FilterOpticalCharacterRecognition
from filter_license_annotation_demo.filter import FilterLicenseAnnotationDemo
from openfilter.filter_runtime.filters.video_in import VideoIn
from openfilter.filter_runtime.filters.webvis import Webvis

if __name__ == '__main__':
    Filter.run_multi([
        (VideoIn, dict(
            sources='file://example_video.mp4!loop',
            outputs='tcp://*:5550',
        )),
        (FilterLicensePlateDetection, dict(
            sources='tcp://localhost:5550',
            outputs='tcp://*:5552',
        )),
        (FilterCrop, dict(
            sources='tcp://localhost:5552',
            outputs='tcp://*:5554',
            detection_key='license_plate_detection',
            detection_class_field='label',
            detection_roi_field='box',
            output_prefix='cropped_',
            mutate_original_frames=False,
            topic_mode='main_only',
        )),
        (FilterOpticalCharacterRecognition, dict(
            sources='tcp://localhost:5554',
            outputs='tcp://*:5556',
            topic_pattern='license_plate',
            ocr_engine='easyocr',
            forward_ocr_texts=True,
        )),
        (FilterLicenseAnnotationDemo, dict(
            sources='tcp://localhost:5556',
            outputs='tcp://*:5558',
            cropped_topic_suffix='license_plate',
        )),
        (Webvis, dict(
            sources='tcp://localhost:5558',
        )),
    ])

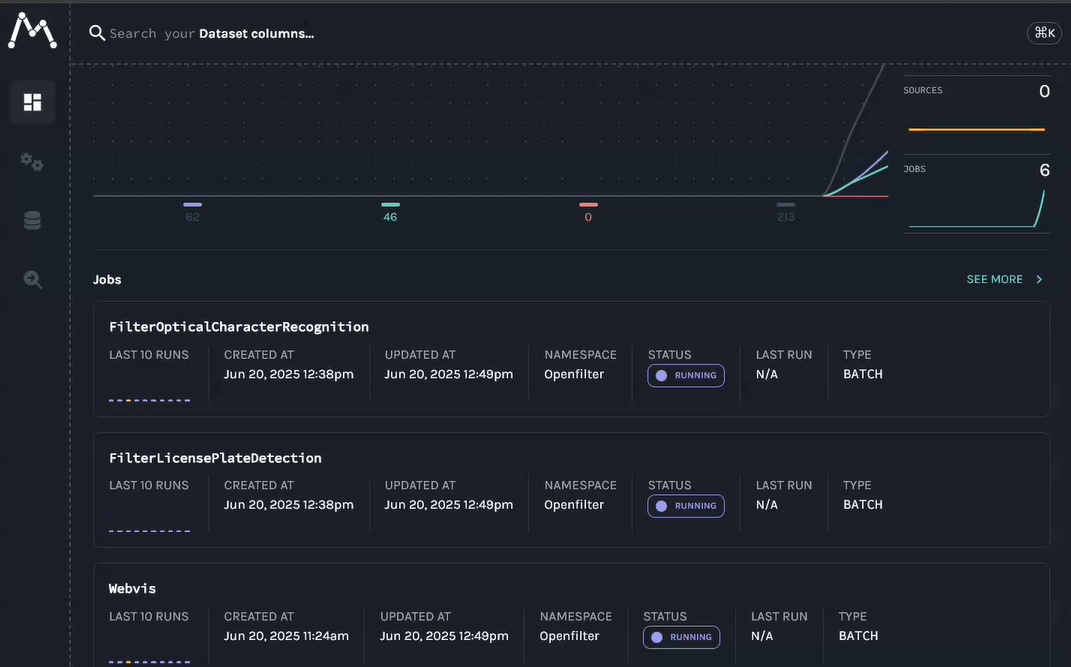

After Executing the code it will be possible to access Marquez Client and visualize the events and the metadata sent from filters

alt text

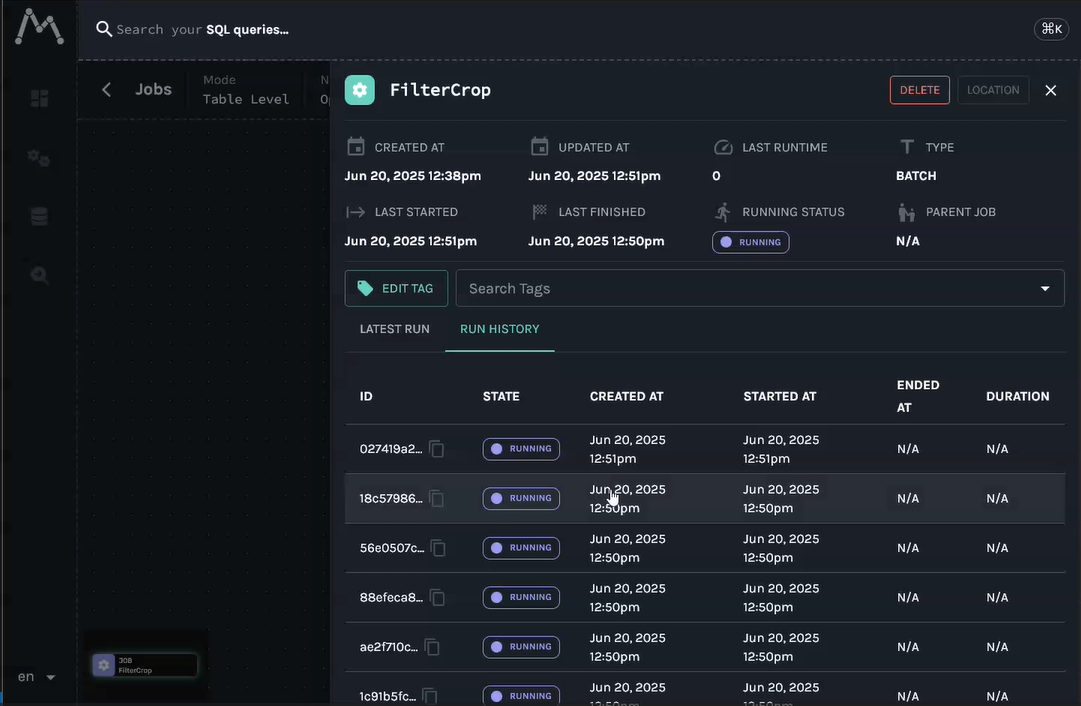

Example for Filter Crop

alt text​

📥 Repository​

You can find this full pipeline and filter implementations in the repository:

🔗 Clone the example repository:

git clone https://github.com/PlainsightAI/openfilter-examples.git
cd openfilter-examples

▶️ Running the OpenFilter Demo​

This example showcases a complete license plate recognition pipeline using OpenFilter filters.

✅ Requirements​

  • Python 3.11
  • Linux system (macOS may work, but is not officially supported)
  • ffmpeg installed and in your PATH

🛠️ Setup Instructions​

  1. [Optional] Create a virtual environment:
python -m venv venv
source venv/bin/activate
  1. Install dependencies:
make install
  1. Run the pipeline:
make run
  1. Open your browser at:
http://localhost:8000

📦 What make run Does​

The command below is executed under the hood:

openfilter run \
  - VideoIn \
    --sources 'file://example_video.mp4!loop' \
  - filter_license_plate_detection.filter.FilterLicensePlateDetection \
  - filter_crop.filter.FilterCrop \
    --detection_key license_plate_detection \
    --detection_class_field label \
    --detection_roi_field box \
    --output_prefix cropped_ \
    --mutate_original_frames false \
    --topic_mode main_only \
  - filter_optical_character_recognition.filter.FilterOpticalCharacterRecognition \
    --topic_pattern 'license_plate' \
    --ocr_engine easyocr \
    --forward_ocr_texts true \
  - filter_license_annotation_demo.filter.FilterLicenseAnnotationDemo \
    --cropped_topic_suffix license_plate \
  - Webvis

🐍 Run with Python Instead (Alternative)​

If you prefer to run it manually:

python filter_license_plate_pipeline_demo/main.py

Be sure to have the correct dependencies installed and Marquez running (http://localhost:5000) before starting the pipeline.

Once the script is running, visit the Marquez UI:

👉 http://localhost:3000

And explore the jobs, runs, and facets related to the pipeline above.

OpenTelemetryClient for OpenFilter

This module provides a telemetry client for OpenTelemetry that integrates seamlessly with OpenFilter. It enables structured, periodic metric collection and export for filters running inside a pipeline — supporting observability across distributed processing components.

🎯 Purpose in OpenFilter​

The OpenTelemetryClient is used to track, aggregate, and export runtime metrics from OpenFilter components (called "filters"). It is intended to:

  • Collect runtime metrics (e.g. CPU, memory, FPS, latency) from each filter
  • Expose those metrics using OpenTelemetry instruments (ObservableGauge)
  • Export them periodically to external systems (Google Cloud Monitoring, OTLP, Console, etc.)
  • Aggregate metrics for each filter for observability and health monitoring

This is crucial for monitoring pipeline performance, troubleshooting, and scaling decision-making in production environments using OpenFilter.

✨ Features​

  • 🕒 Periodic metric export (default: every 3 seconds)
  • 🧩 Built-in support for multiple exporters:
    • console: print metrics to stdout
    • gcm: Google Cloud Monitoring
    • otlp_grpc and otlp_http: OpenTelemetry Protocol via gRPC or HTTP
  • ⚙️ Customizable via environment variables or constructor params
  • 🧠 Auto-creation of observable gauges for each filter + metric
  • 📈 Aggregation of metrics (e.g., mean CPU per pipeline)
  • 🔒 Thread-safe metric updates
  • ⛔ Export skipping logic to avoid redundant updates per interval

🛠️ How to Use (Environment Variables)​

The OpenTelemetryClient can be configured entirely through environment variables — allowing flexible, deployment-friendly setups without modifying application code.

🌍 Environment Variables and Their Purpose​

VariablePurposeExample Value
TELEMETRY_EXPORTER_ENABLEDEnables or disables telemetry collection"true" / "false"
TELEMETRY_EXPORTER_TYPESelects exporter type: console, gcm, otlp_grpc, or otlp_http"console"
PROJECT_IDGoogle Cloud project ID (used for GCM exporter)"my-gcp-project"
EXPORT_INTERVALInterval in milliseconds between metric exports"10000" (for 10 seconds)
OTEL_EXPORTER_OTLP_GRPC_ENDPOINTEndpoint for OTLP gRPC export"http://localhost:4317"
OTEL_EXPORTER_OTLP_HTTP_ENDPOINTEndpoint for OTLP HTTP export"http://localhost:4318"

🐧 Linux (bash) and 🖥 macOS (zsh)​

⏱ Temporary (valid only for the current terminal session)​

export TELEMETRY_EXPORTER_ENABLED=true
export TELEMETRY_EXPORTER_TYPE=otlp_http
export PROJECT_ID=my-gcp-project
export EXPORT_INTERVAL=10000
export OTEL_EXPORTER_OTLP_HTTP_ENDPOINT=http://localhost:4318

🪟 Windows​

⏱ Temporary (valid only for the current CMD session)​

Run these commands directly in the Command Prompt:

set TELEMETRY_EXPORTER_ENABLED=true
set TELEMETRY_EXPORTER_TYPE=otlp_http
set PROJECT_ID=my-gcp-project
set EXPORT_INTERVAL=10000
set OTEL_EXPORTER_OTLP_HTTP_ENDPOINT=http://localhost:4318

S3 Integration Example​

Process video files stored in Amazon S3 with OCR analysis. This example demonstrates downloading video from S3, processing with optical character recognition, and visualizing results. You can get a sample video file to test from examples/hello-ocr/hello.mov.

    AWS_PROFILE=<profile> openfilter run \
      - VideoIn --sources 's3://<bucket_name>/test/hello.mov!loop' \
      - filter_optical_character_recognition.filter.FilterOpticalCharacterRecognition --ocr_engine easyocr --forward_ocr_texts true \
      - Webvis

Replace <profile> with your AWS profile name and <bucket_name> with your S3 bucket name. This example:

  • Downloads the video file from the specified S3 bucket using your AWS credentials
  • Processes each frame with OCR using EasyOCR to extract text content
  • Forwards the extracted text data along with the video frames
  • Displays both the video and OCR results in the browser at http://localhost:8000
  • The !loop option continuously replays the video for ongoing processing

Prerequisites:

  • AWS credentials configured (via AWS CLI, environment variables, or IAM roles)
  • S3 bucket with read permissions for the specified video file
  • OpenFilter with S3 support: pip install openfilter[all]
  • OCR filter: pip install filter-optical-character-recognition

Other stuff:

  • Metrics are published for all individual filters on an invisible topic '_metrics'. You will only get this if you explicitly subscribe to it. 'fps', 'lat_in' and 'lat_out' are latencies in milliseconds of when frames were grabbed to the time of input to or output from that filter, 'cpu' is current process and all its children and 'mem' is memory usage in GB also process recursive. 'gpu0..7' and 'gpu0..7_mem' are GPU metrics in percent utilization and GB used, they are global so if you are running multiple filters in processes they will all show the same values.

  • By default, when you set a source without explicit topics like tcp://localhost:5552, you will get all the topics that source publishes EXCEPT system topics like _metrics. If you wish to subscribe to absolutely EVERYTHING including _metrics, then use a single wildcard topic as such: tcp://localhost:5552;*.

  • Ephemeral channels are a thing which don't participate in the synchronization and flow control of frames, then can request frames though if no other client has done so yet. These are meant for stuff that takes a long time to process to grab frames from the normal stream without holding everything else up. You specify an ephemeral source by adding a '?' to the end of the source address, e.g. 'tcp://127.0.0.1?'. For ZeroMQ addresses only, no videos. Doubly ephemeral '??' is also possible which doesn't even advise upstream of its existence, it just listens on the publish address.

  • Util Filter with useful stuff like logging, censor boxes, resize, etc...

  • Data Capture Filter to record data from upstream to json files.

  • Remember than when using tcp:// sources and outputs that there are two ports which are used, the port specified and the port specified +1. This is important if you will be exposing ports to use with ssh tunnels for example, REMEMBER THIS SECOND PORT or stuff will not work.

  • You can run individual or multiple filters with openfilter: python -m openfilter run Webvis --id mywebvis --sources tcp://localhost .... Can plug into existing running pipelines to watch or debug or record. If you do not wish to affect the existing pipeline then you should make sure to use the -p switch to turn off exit/error message propagation to the pipeline and use an ephemeral connection to the source tcp://upstream:5552?. WARNING! Caveat, if you connect to a source which has ONLY ephemeral outputs, you may wind up stealing frames from the pipeline, so don't do this. Also, don't plug into something that is load balancing outputs.

  • When specifying ! options in some source or output or other thing, the format !option=value will set the option to value, just !option will set it to True and just !no-option will set it to False.

  • For quick information about a specific filter, do openfilter info VideoIn for example.

OpenFilter Observability System

OpenFilter includes a comprehensive observability system that provides safe, aggregated metrics without PII leakage. The system uses OpenTelemetry for metric aggregation and OpenLineage for export to monitoring systems like Oleander.

Quick Start​

1. Enable Observability​

export TELEMETRY_EXPORTER_ENABLED=true
export OF_SAFE_METRICS="frames_processed,frames_with_detections,detection_confidence_histogram"

2. Configure OpenLineage (Optional)​

export OPENLINEAGE_URL="https://oleander.dev"
export OPENLINEAGE_API_KEY="your_api_key"
export OPENLINEAGE__HEART__BEAT__INTERVAL=10

3. Add Metrics to Your Filter​

from openfilter.filter_runtime.filter import Filter
from openfilter.observability import MetricSpec

class MyFilter(Filter):
    metric_specs = [
        MetricSpec(
            name="frames_processed",
            instrument="counter",
            value_fn=lambda d: 1
        ),
        MetricSpec(
            name="frames_with_detections",
            instrument="counter",
            value_fn=lambda d: 1 if d.get("detections") else 0
        ),
        MetricSpec(
            name="detection_confidence",
            instrument="histogram",
            value_fn=lambda d: d.get("confidence", 0.0),
            num_buckets=8  # Auto-generate 8 buckets
        )
    ]

    def process(self, frames):
        for frame_id, frame in frames.items():
            # Process frame and add results to frame.data
            frame.data["detections"] = self._detect_objects(frame)
            frame.data["confidence"] = self._get_confidence(frame)
        return frames

Key Features​

Security First​

  • Allowlist enforcement - Only approved metrics leave the process
  • Optional raw data - Controlled export for debugging (OPENLINEAGE_EXPORT_RAW_DATA)

Smart Automation​

  • Automatic histogram buckets - Logarithmic spacing based on metric type
  • Conditional initialization - OpenLineage only starts when configured
  • Backward compatibility - Existing filters work without changes

Metrics Types​

  • Counters - Running totals (frames processed, detections found)
  • Histograms - Distributions (confidence scores, processing times)
  • Gauges - Current values (memory usage, temperature)

Metric Types​

Counters​

MetricSpec(
    name="frames_processed",
    instrument="counter",
    value_fn=lambda d: 1  # Count every frame
)

Histograms (Auto-generated buckets)​

MetricSpec(
    name="detection_confidence",
    instrument="histogram",
    value_fn=lambda d: d.get("confidence", 0.0),
    num_buckets=8  # Auto-generate 8 buckets (0.1, 0.3, 0.5, 0.7, 0.9)
)

Histograms (Custom buckets)​

MetricSpec(
    name="processing_time_ms",
    instrument="histogram",
    value_fn=lambda d: d.get("processing_time", 0),
    boundaries=[1.0, 5.0, 10.0, 25.0, 50.0, 100.0]  # Custom buckets
)

Gauges​

MetricSpec(
    name="memory_usage_mb",
    instrument="gauge",
    value_fn=lambda d: d.get("memory_usage", 0)
)

Configuration Options​

Core Environment Variables​

# Enable observability system
export TELEMETRY_EXPORTER_ENABLED=true

# Safe metrics allowlist - only these metrics are exported
export OF_SAFE_METRICS="frames_processed,frames_with_detections,detection_confidence"

# Or use YAML file (recommended for wildcards and complex patterns)
export OF_SAFE_METRICS_FILE=/path/to/safe_metrics.yaml

OpenLineage Integration​

# Server configuration
export OPENLINEAGE_URL="https://oleander.dev"
export OPENLINEAGE_API_KEY="your_api_key"
export OPENLINEAGE_ENDPOINT="/api/v1/lineage"
export OPENLINEAGE_PRODUCER="https://github.com/PlainsightAI/openfilter"

# Heartbeat interval (seconds)
export OPENLINEAGE__HEART__BEAT__INTERVAL=10

# Optional: Export raw subject data (disabled by default)
export OPENLINEAGE_EXPORT_RAW_DATA=false

OpenTelemetry Export​

# Export type: console, gcm, otlp_http, otlp_grpc, prometheus
export TELEMETRY_EXPORTER_TYPE=console

# Export interval (milliseconds)
export EXPORT_INTERVAL=3000

# For OTLP exporters (Jaeger, Grafana, Datadog, etc.)
export TELEMETRY_EXPORTER_OTLP_ENDPOINT="http://localhost:4317"

# For Google Cloud Monitoring
export PROJECT_ID="your-gcp-project"

# For OTLP headers (authentication)
export OTEL_EXPORTER_OTLP_HEADERS="Authorization=Bearer <token>"
export OTEL_EXPORTER_OTLP_HTTP_ENDPOINT="http://localhost:4318"
export OTEL_EXPORTER_OTLP_GRPC_ENDPOINT="http://localhost:4317"

Example Output​

OpenLineage Heartbeat Facets​

{
  "frames_processed": 150,
  "frames_with_detections": 89,
  "detection_confidence_histogram": {
    "buckets": [0.1, 0.3, 0.5, 0.7, 0.9],          // Numeric values (floats)
    "counts": [12, 23, 34, 45, 36],                 // Numeric values (integers)
    "count": 150,
    "sum": 67.5
  },
  "processing_time_ms_histogram": {
    "buckets": [1.0, 5.0, 10.0, 25.0, 50.0],       // Auto-generated boundaries
    "counts": [45, 67, 28, 8, 2],                   // Distribution counts
    "count": 150,
    "sum": 2345
  }
}

Note: Histogram buckets and counts are sent as numeric values (floats/integers), not strings, for better compatibility with analysis tools.

With Raw Data Export​

{
  "frames_processed": 150,
  "frames_with_detections": 89,
  "raw_subject_data": {
    "frame_001_0": {
      "detections": [
        {
          "class": "person",
          "confidence": 0.85,
          "bbox": [100, 200, 300, 400]
        }
      ],
      "confidence": 0.85,
      "processing_time": 23.4,
      "_timestamp": 1234567890.123,
      "_frame_id": "frame_001",
      "_unique_key": "frame_001_0",
      "_frame_number": 0
    }
  }
}

Advanced Usage​

Complex Value Extraction​

# Nested object access
value_fn=lambda d: d.get("results", {}).get("confidence", 0.0)

# Array operations
value_fn=lambda d: len(d.get("detections", []))

# Conditional logic
value_fn=lambda d: 1 if d.get("detections") else 0

# Computed values
value_fn=lambda d: d.get("processing_time", 0) * 1000  # Convert to ms

YAML Allowlist Configuration​

# safe_metrics.yaml
safe_metrics:
  - frames_*
  - *_histogram
  - *_counter
  - detection_confidence
  - processing_time_ms
  - memory_usage_mb

Debug Logging​

export FILTER_DEBUG=true
export OPENLINEAGE_EXPORT_RAW_DATA=true

Troubleshooting​

Common Issues​

  1. No metrics appearing

    • Check TELEMETRY_EXPORTER_ENABLED=true
    • Verify OF_SAFE_METRICS includes your metric names
    • Ensure OPENLINEAGE_URL is set correctly

  2. Histogram bucket mismatch

    • Verify len(counts) = len(boundaries) + 1
    • Use num_buckets for auto-generation or boundaries for custom

  3. Raw data not appearing

    • Set OPENLINEAGE_EXPORT_RAW_DATA=true
    • Check that frames have data in frame.data

  4. OpenLineage not starting

    • Ensure OPENLINEAGE_URL is set
    • Check API key and endpoint configuration

Expected Timeline​

With default settings (OPENLINEAGE__HEART__BEAT__INTERVAL=10):

  • 0-10 seconds: Empty or minimal payloads (system warming up)
  • 10-20 seconds: Some metrics start appearing
  • 20+ seconds: Full metric payloads with meaningful data

This is normal behavior and ensures that metrics are properly aggregated before being sent to Oleander.

For detailed documentation, see Observability Guide.
